Product Features

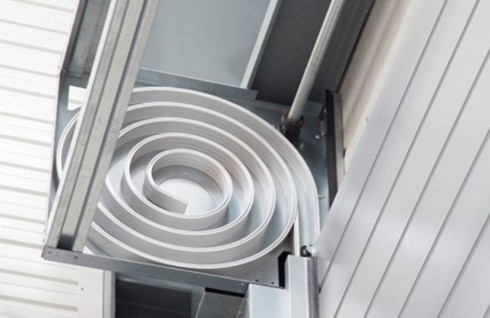

- The hinge-coupled panel can be stored in a space within 800mm in the form of being rolled into a spiral crack in the upper bracket.
- Most metals are made of an extruded aluminum anodizing coating, so they are corrosion-free and lightweight.
- The parts are hardly consumed, so maintenance is not required until 100,000 times.
- It is safe because it is driven by a chain, and is safe with the operation of the centrifugal fall prevention device when cutting the chain.
- The panel left on the top retains the load, so it does not fall at once.
- In case of panel damage, the repair period is short and the cost is low because only the panel needs to be repaired without affecting the entire door.
You can Check by Scrolling Left / Right.
| Specification | Spiral Door |
|---|---|
| Speed / Wind Resistance | 1.2M / SEC |
| Panel Thickness | 43mm |
| Panel Height | 180 ~ 230mm |
| Space Required for Installation | Upper : 600 ~ 800mm Lower : 600 ~ 800mm |
| Motor | 0.75 ~ 1.5KW a Servo Motor |
| Controller | Built-in Servo Driver |
| Emergency Opening / Closing System | By operating the emergency opening/closing switch, the counterbalance forces the counterbalance forces to open/close by applying additional force in the upward direction |
| Safety Device | Side photo sensor, lower wireless air pressure sensor, dual safety device |
| Fall Prevention Device | Structurally low risk of fall without installation (shutter insulation structure) |
You can Check by Scrolling Left / Right.
| Category | Airtightness | Wind Resistant Pressure |
|---|---|---|
| Spiral Door | The guide rail is a double closed type, which has excellent cooling and heating effects. | It is a wind-resistant structure in which rollers and windlocks are in close contact with the dual structure guide rail, and is resistant to wind. Up to 40M / SEC |
| Stacking Door | Although the guide rail is a single closed type, it has excellent cooling and heating effects. | A simple guide rail structure with a windlock. |
| Overhead Door | SEALING treatment is possible for each part, but durability is not long due to wear due to friction during DOOR operation. There is a lot of energy loss due to the gap. |
Simple guide rail structure makes it vulnerable to wind resistance. Up to 28M / SEC |
You can Check by Scrolling Left / Right.
| Spiral Door | Speed Door | Stacking Door | |
|---|---|---|---|
Sealing |
Dual Track Compression Sealing |
Straight Brush Seal |
Straight Brush Seal |
Panel Strength |
Internal Insulated Foaming with Reinforced Core |
None |
None |
| Safety Features | Manual Operation Possible During Power Outages |
Manual Operation Possible During Power Outages |
Manual Operation Possible During Power Outages |
Durability |
Auto-recovery, Long-lasting |
Full Replacement Needed in case of Damage, Moisture Sensitive |
Full Replacement Needed in case of Damage, Moisture Sensitive |
Operation Mechanism |
Plastic Chain Belt |
Wire Drum |
Wire Drum |
| Speed | 1 to 2.5 Meters Per Second |
0.5 Meters Per Second |
0.5 Meters Per Second |
| Security | Lockable and Burglar-proof |
Vulnerable to External Intrusion |
Vulnerable to External Intrusion |
| AS | Easy Part Replacement |
Easy Part Replacement |
Speed Door Dismantling and Replacement Required |
| Advantages | High Speed and Wind-resistant Shutter Functionality |
Medium Speed, Susceptible to Wind Pressure and Security Risks |
Slow Speed, Vulnerable to Wind Pressure and Chain Dislodgement |
