Stacking Door
-
Product Features

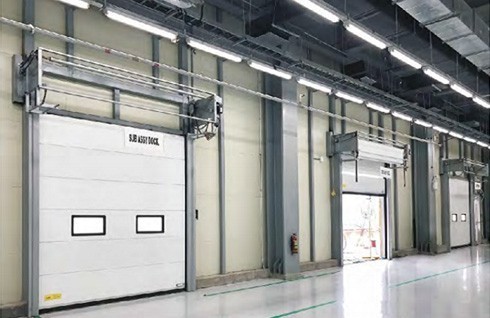

- It is a door structure that can be used in distribution centers and factories that do not have much ceiling space.
- Door panels are opened and closed in a stacked form, and side sealing when the door is closed has higher insulation efficiency than conventional overhead doors.
- It is precisely manufactured with a mechanical mechanism and has a constant operation.
- It is durable even for long-term use because there are no consumable parts, and the frequency of AS is low.
- In the event of a defect, it can be checked with the naked eye and repaired with the technical skills of a facility maintenance person.
- It is especially suitable if the storage space is narrow, or if there are many obstacles caused by facilities in the building.
Specifications
You can Check by Scrolling Left / Right.
| Specification | Stacking Door |
|---|---|

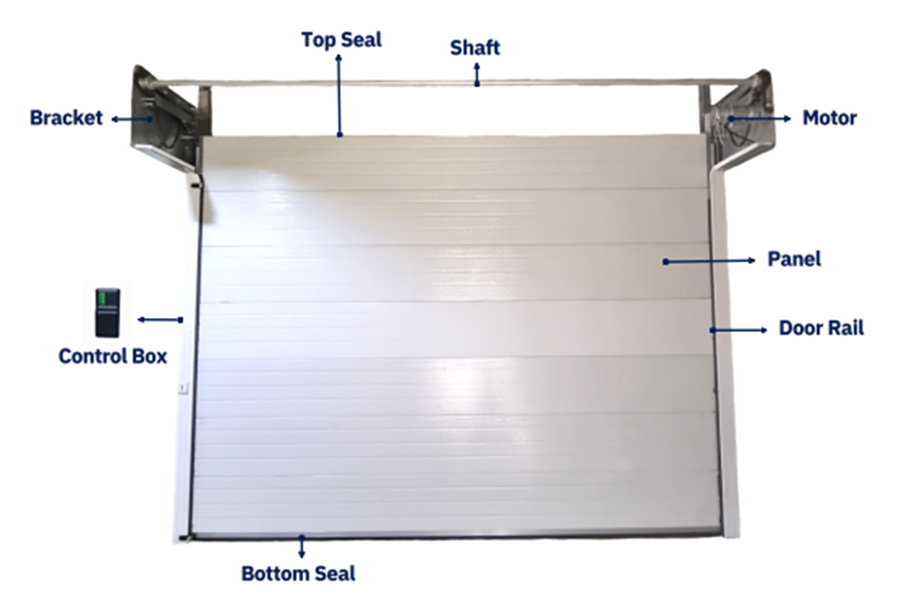

| Product Configuration | 1. PANEL 2. RAIL 3. Configured with BREAKET (Driving) - The PANEL quantity is determined according to the height of the opening of the 30mm PITCH. |

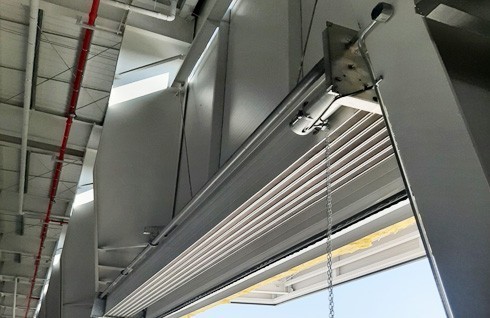

| Principle of Operation | - Each PANEL has a CHAIN connection PIN attached to the ROLLER installed on both ends of the PANEL, and CHAIN is connected to the PIN to form each separated PANEL into one integrated PANEL. - When the electric motor is rotated, the integrated PANEL is connected to the CHAIN installed on both ends and the SPROCKET installed on the upper driver (BRACKET), and the DOOR connected to the CHAIN operates in the up and down directions. |
| Wind Resistance & Airtightness | - The guide rail is double-sealed, so it has excellent cooling and heating effects. - It is a wind-resistant structure in which rollers and windlocks are in close contact with the dual structure guide rail, and is resistant to wind. |
| Advantage | - Precisely manufactured by mechanical mechanisms, consistent operation. - It is durable even when used for a long time because there are no consumable parts. - In the event of a defect, it can be checked with the naked eye, and it can be repaired with the technical skills of a person in charge of facility maintenance. - It is especially suitable if the storage space is narrow, or if there are many obstacles caused by facilities in the building. |
